Simerics, Inc develops, markets, and supports CAE software for the virtual simulation and testing of fluid pumps, valves, compressors, motors, and systems. Simerics is focused on providing tools that allow manufacturers to reduce expensive hardware testing and provide unique insight into their products. Founded in 2005, Simerics provides the advantage of the latest in simulation technology. Simerics offers two state-of-the art CAE tools: SimericsMP® and SimericsMP+®.
SimericsMP is for Multi-Purpose applications and Simerics-MP+ includes all the capabilities of Simerics-MP with additional features such as streamlined setup procedures, automated mesh/re-mesh for key components especially moving components, and customized data reduction.
Simerics®MP is a collection of core 3-D CFD capabilities and physical modules that enables accurate virtual testing for multi-purpose (MP) applications involving single phase or multiphase flow, turbulence, cavitation/aeration, heat and mass transfer, particle and fluid-structure interaction.
Comprehensive physics
Accurate predictions
Fast model creation, even faster simulation speed
Able to model complex details down to the micro scale
Comprehensive physics
Accurate predictions
Fast model creation, even faster simulation speed
Able to model complex details down to the micro scale
Computaional fluid dynamics is complex, but our software makes it easy. Through its unrivaled, intuitive, and user-friendly designed process.

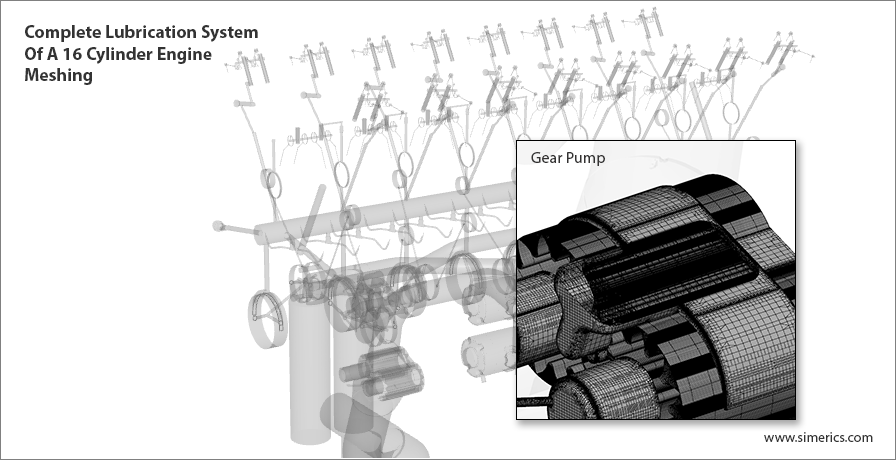

Simerics-MP has a built in general purpose mesher. It generates body fitted binary tree mesh directly and automatically from CAD surfaces. No CAD cleaning is required. User can always get a valid mesh even with the default settings. The mesher also provide easy and intuitive ways to refine the mesh in user-defined region. The mesh generated has very high quality and very high efficiency.
Automatic mesh generation and automatic one-step generation of separated solid, fluid domains for problems within conjugate heat transfer applications.
Time taken for “dirty” CAD geometry import to mesh generation is significantly negligible. No CAD cleanup required.
Learn More
Simerics-MP solves compressible and incompressible, laminar and turbulence, internal and external, and steady and unsteady fluids flows use RANS finite volume based approach. The solver covers all flow speeds from creeping flow to supersonic flow. It also solves non-Newtonian fluid as well as fluid with variable properties such as real gas.
Proprietary numerical algorithm with significantly faster run-time, faster convergence, and rapid simulation results.
Learn More

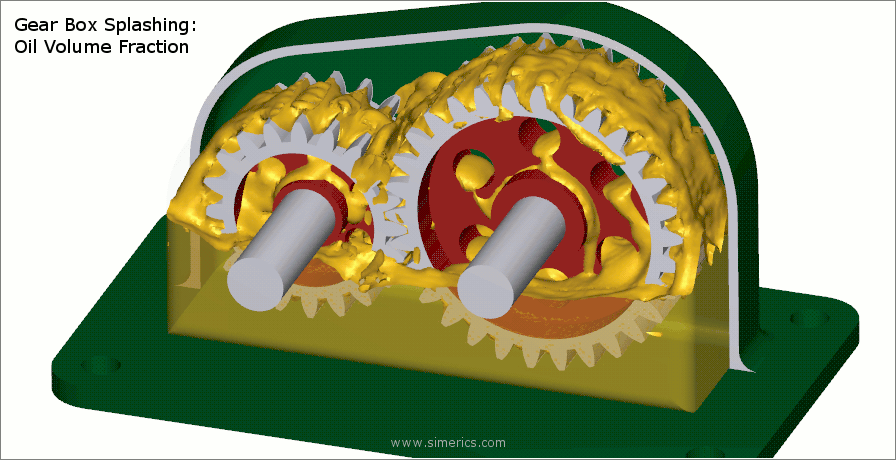

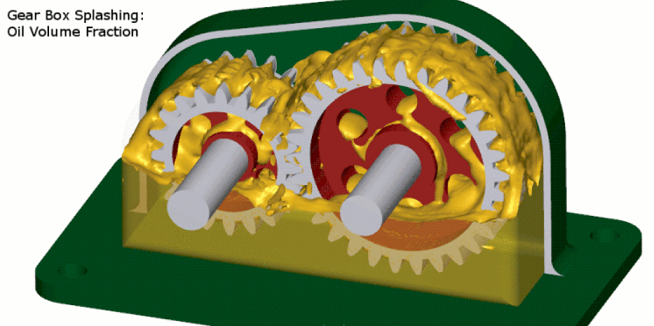

Simerics-MP solves multiphase flow and heat transfer uses Volume of Fluid (VOF) approach with high resolution interface capturing algorithm. Both implicit and explicit approaches are fast and robust with sharp phase interface and excellent mass/volume conservation for each phases.
Multiphase flow with heat transfer, surface tension, and liquid-solid surface contact angle..
Excellent correlation with test data over the full operating range, and always has excellent mass/volume/energy conservation.
Learn More

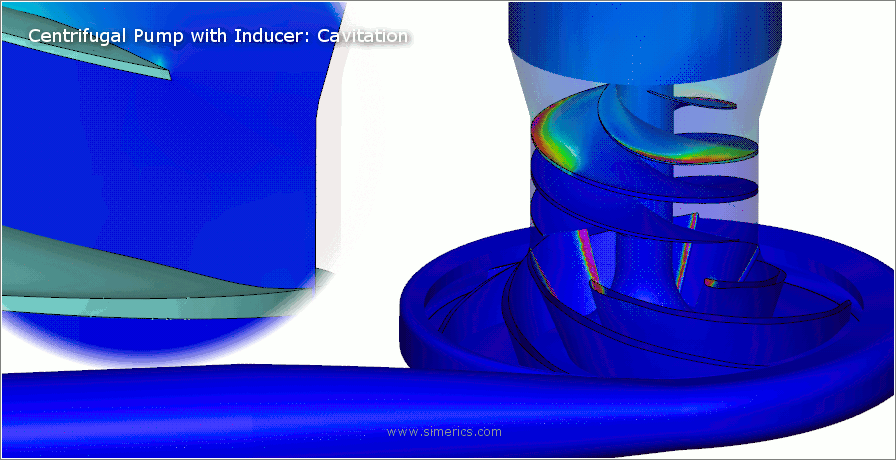

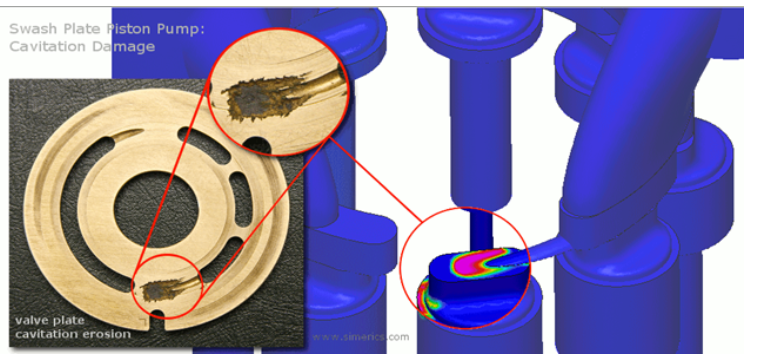

Simerics-MP take into account liquid vapor, non-condensable gas, and liquid compressibility together to form a very comprehensive cavitation and aeration model. The transition of non-condensable gas between dissolved and free states is also included in the model.
Liquid evaporation, dissolved or free non-condensable gas, liquid compressibility.
Excellent correlation with test data for cavitation inception, bubble formation, location of erosion, and cavitation induced performance reduction such as NPSHr.
Learn More

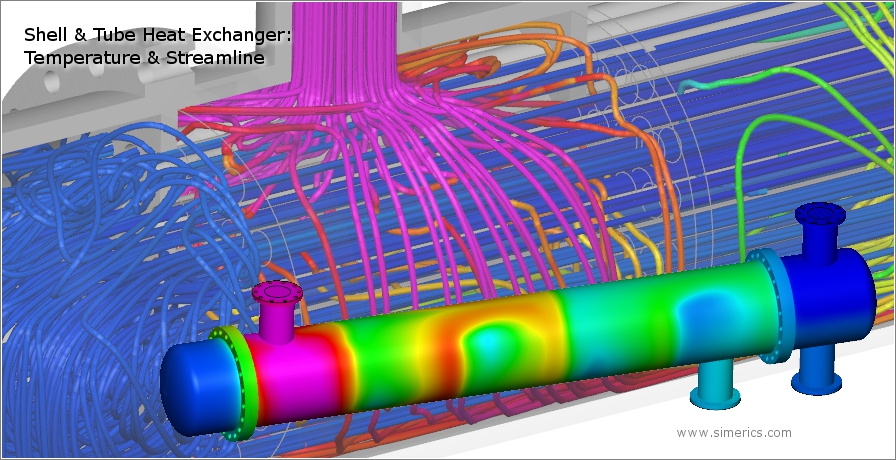

Simerics-MP solves conductive, convective, and conjugated heat transfer in solids and fluids with temperature/pressure dependent material properties. Combined with flow solve, MP-Heat covers both forced convection and free convection. A separate surface to surface Radiation module handles radiative heat transfer very efficiently even for the model with huge number of surfaces.
Conduction, forced convection, free convection, radiation, thermal dynamics, viscous heating, and variable material properties.
Excellent correlation with test data over the full operating range.
Learn More
